Top quality Hydrophilic Swelling Bentonite Waterstop for concrete joint

FOB Reference Price:Get Latest Price
US $2-4 / Meters | 500 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
LW
Model Number:
lw-1
Type:
Other Waterproofing Materials
colour:
red;black;blue
Supply Ability
Supply Ability:
5000 Meter/Meters per Month
Packaging & Delivery
Packaging Details

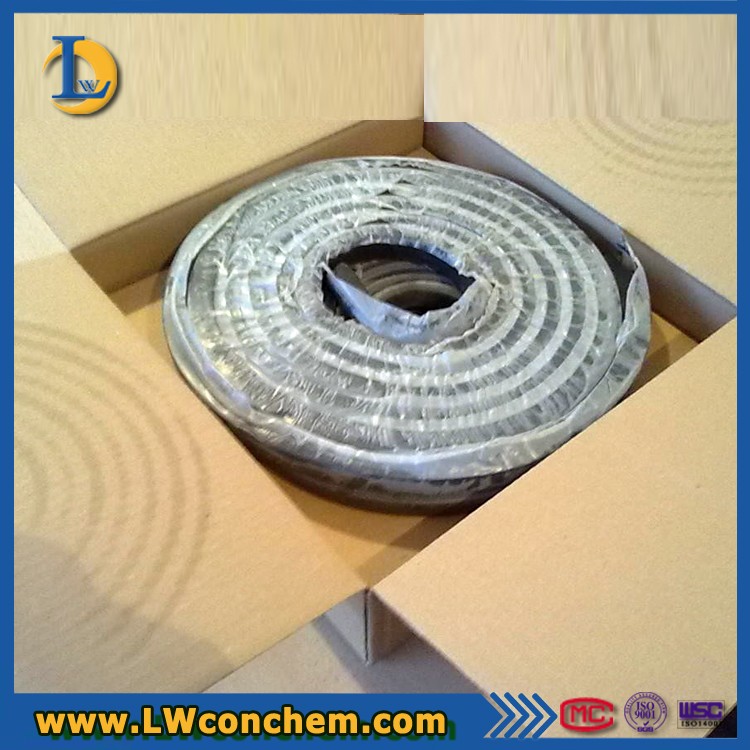

Packaging Detail: 5m in a roll,5 rolls in a carton .
Port
Tinjin/Shanghai
Lead Time :
receive the deposite after 5 days

 Top quality Hydrophilic Swelling Bentonite Waterstop for concrete joint



Waterstop strip 5



Product Description



Water-stop is based on natural rubber and synthetic rubber, mixed with various additives and fillers. It has good elasticity, abrasion resistance, aging resistance and tear resistance.



Applications of Expanding rubber water stops



Rubber Water stop is widely used in underground installation, tunnel and culvert, impounding reservoir, metro, and retaining dam and so on.





Physical property



Items

index

B

S

J

1. Hardness ( Shore A )

60±5

60±5

60±5

2.Tensile strength ,MPa                            ≥

15

12

10

3.Elongation at break , %                 ≥

380

380

300

4.Compression set %

70ºC×24h,%        ≤

35

35

35

23ºC×168h,%          ≤

20

20

20

5.Tear strength,KN/m                                ≥

30

25

25

6.Brittleness temperature,°C                                     ≤

-45

-40

-40

7.Air aging

70ºC×168h

Hardness ( Shore A )   ≤

8

8

--

Tensile strength,MPa          ≥

12

10

Elongation at break , %           ≥

300

300

100ºC×168h

Hardness ( Shore A )   ≤

--

--

8

Tensile strength, MPa          ≥

9

Elongation at break , %           ≥

250

8. Resistance ozone ageing 50pphm: 20%,  48h

2grade

2 grade

0 grade

9. Adhesion of rubber to metal

With contact section in elastomer



Advantages of rubber waterproof water stop bentonite

   1. It is permanently active system, which swells up to approximately (150%~300%).

   2. It is an ecological and user friendly system: simple and quick to install by means of gun nailing.

   3. The composition of bentonite water-stop prevents premature swelling.

   4. The waterstop has a proven track record in water treatment plants, water purification plants, water tanks,

       metro works and other concrete structures subject to high water pressure

Bentonite Swellable Waterstopwater_swellable_rubberQQ20140411135034u=60202096,175109999&fm=23&gp=0rubber waterproof water stop bentonite Steel-edged water stop in high efficiency waterproof

Company Information

As an member of Chemical Grouting Sub-Committee, Chinese Hydraulic Engineering Society, the Director Member of Waterproof Sub-Committee and China Construction Industry Association.LANGWEI Conchem is a fast growing international manufacturer of construction chemicals with plants in Beijing, China. The company is specialized in preventative and remedial waterproofing products.


Preventative waterproofing products are wildly used during new construction and are usually installed by the general contractor. Examples are bentonite strips, hydrophilic mastics and rubbers, which swell in contact with water and hence block water ingress, injection hoses, which can be injected at a later stage to block water and finally cementitious coatings for basement waterproofing and elastomeric membranes for tanks and roofs.

Remedial waterproofing products are mostly used when major (or minor) water leaks happen at a later stage and are usually applied by specialist applicators. Remedial waterproofing products are also often used during construction of tunnels and other underground constructions to prevent infiltrating water from hindering the normal progress of the works. Examples are injection resins based on Polyurethanes (both 1C and 2C) and Poly-acrylates. These products are also used for Soil and Rock Stabilization, together with Organo-minerals.

LANGWEI Conchem also manufactures a series of products for the Protection and Repair of reinforced Concrete. Examples are cementitious grouts and mortars, epoxy injection resins, carbon fibre laminates and epoxy glues.

OFFICE

Logistic


LW Certifications

CERTIFICATES 2

LW Applications

LangWei products inclueds preventative and remedial waterproofing products, which are mostly used in Balcony waterproofing, car part decks, concrete repair and protection, facade waterproofing, flooring systems, injection equipments, packers & accessories, preventative waterproofing, remedial waterproofing, roof waterproofing, sewer rehabilitation, soil injections, tunel applications and so on.
